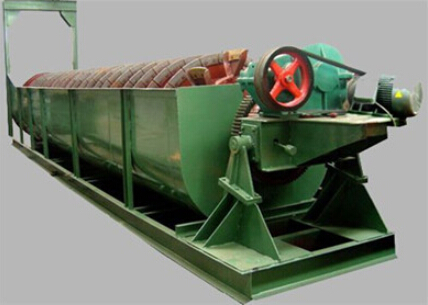

　　Spiral Classifier

　　Description

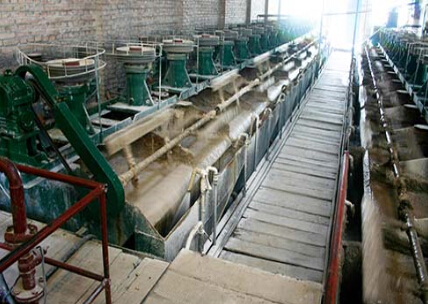

　　The spiral classifier is used widely in mineral processing. Forming the close circuit with grinding mills, it’s applied for pre-grading and grading operations, as well as fine materials desliming and dehydration. This machine, using the principles of difference in granularity and gravity of solids and resulting thus in different sedimentation velocity, is a mechanical classification equipment. The spiral classifier manufactured by Y.H. Heavy has advantages of simple structure, reliable work and convenient operation.

　　Trough length ：≤3000-14300mm

　　Screw diameter：300-3000mm

　　Composition: the classifier is composed mainly by transmission part, screw, trough, lift mechanism, base (bearing bush) and discharge valve.

　　Applications: the classifier is mainly used for pre-grading and grading in mineral processing and sand grinding circuit as well as desliming and dehydration in sand washing operations.

工作原理

　　Working principles

　　The spiral classifier, using the principles of difference in granularity and gravity of solids resulting therefore in different sedimentation velocity, is a mechanical classification equipment which operates to make the fine particles floating on the water or out-flowing, and coarse ones settled on the bottom of the trough, and then the fine ones are pushed and discharged out finally by screw. The classifier can filter the powered materials from the mill, then discharge out the filtered fine materials by overflow pipes, and coarse materials are entered in the mill by spiral blades. The base is welded by U-steel, and the frame by steel plates. As the pig iron sleeve is very durable, it’s used for fabricating the head and spindle nose of screw axis. Electrical and manual lift mechanisms are available.

技术参数

Type	Size	Screw diameter（mm）	Trough length （mm）	Speed of screw（r/min）	Capacity（t/d）		Slope of trough	Power（kw）		Overall dimension （mm）
Type	Size	Screw diameter（mm）	Trough length （mm）	Speed of screw（r/min）	Sand return	Overflow	Slope of trough	Driving motor	Lifting motor	Overall dimension （mm）
High weir spiral classifier	FG500	φ500	4500	12	192	32	18	1.1		6409×712×1599
	FG750	φ750	5500	7.80	256～564	65	14-18.5	3.0		7100×990×1450
	FG-1000	φ1000	6490	5.0～7.0	650～1080	110	14-18.5	7.5		8084×1424×2503
	FG-1200	φ1200	6600	5.0～7.0	1170～1600	155	14-18.5	11	0.4	8195×1574×2747
	FG-1500	φ1500	8230	2.5～6.0	1140～2740	235	14-18.5	11	0.4	9818×1976×3703
	FG-2000	φ2000	8400	3.0～3.5	3240～5400	400	14-18.5	11	2.8	10200×2530×4486
	FG-2400	φ2400	9200	2.5～4.0	4650～7450	580	14-18.5	11-15	2.8	11000×2930×5690
	2FG-1200	φ1200	6600	5.0～7.0	2340～3200	310	14-18.5	11×2	0.4×2	8686×2802×3101
	2FG-1500	φ1500	8300	4.0～6.0	3660～5480	470	14-18.5	11×2	0.4×2	9818×3506×3703
	2FG-2000	φ2000	8400	3.0～5.5	6480～10800	800	14-18.5	11×2	2.8×2	10200×4610×4486
	2FG-2400	φ2400	9200	2.5～4.0	9300-14900	1160	14-18.5	15×2	2.8×2	11000×5430×5690
	2FG-3000	φ3000	12500	2.0～3.2	14600～23400	1785	14-18.5	18.5×2	4×2	14500×6630×6350
Submerged spiral classifier	FC-1000	φ1000	7600	5.0～7.0	675～1080	85	14-18.5	7.5	0.4	9190×1506×3101
Submerged spiral classifier	FC-1200	φ1200	8400	5.0～7.0	1170～1630	120	14-18.5	11	0.4	9384×1846×3277
	FC-1500	φ1500	10480	2.5～6.0	1140～2740	185	14-18.5	11	0.8	12068×1976×4305
	FC-2000	φ2000	12900	3.0～3.5	3240～5940	320	14-18.5	11-15	2.8	14700×2530×5343
	FC-2400	φ2400	14200	2.5～4.0	4650～7450	455	14-18.5	11-18.5	4.0	13000×2930×6885
	2FC-1200	φ1200	8400	5.0～8.0	1770～2800	240	14-18.5	11×2	0.4×2	10000×3700×4190
	2FC-1500	φ1500	10500	2.5～6.0	2800～5480	370	14-18.5	11×2	4.4	10588×3506×4035
	2FC-2000	φ2000	12900	3.0～5.5	6480～11800	640	14-18.5	15×2	2.8×2	14700×4610×5343
	2FC-2400	φ2400	14200	2.5～4.0	9300～14900	910	14-18.5	18.5×2	4×2	13000×5430×6885
	2FC-3000	φ3000	14300	2.0～3.2	14600～23400	1410	14-18.5	22×2	4×2	16200×6630×8680
