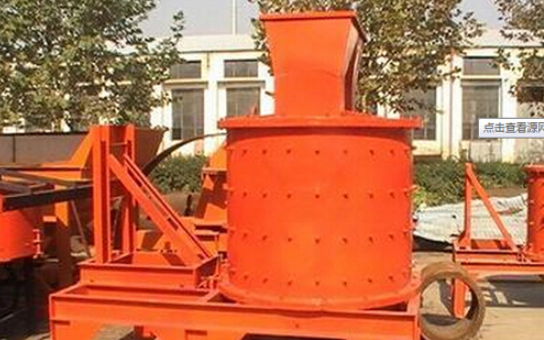

PFL Series Vertical Complex Crusher

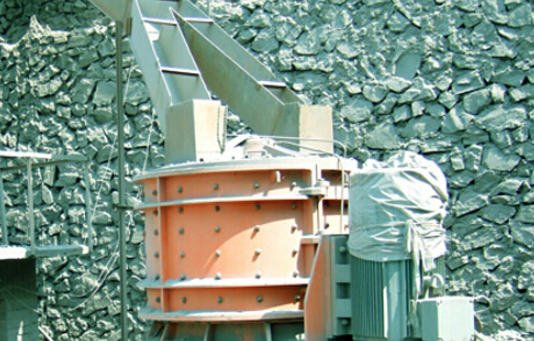

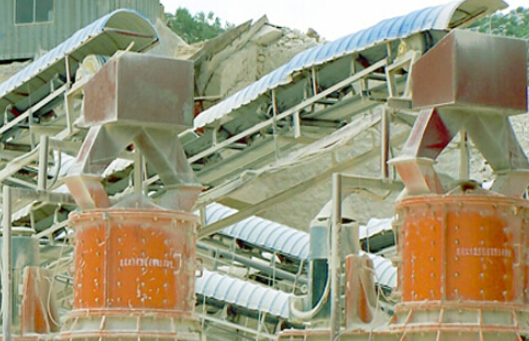

　　Application: This equipment is widely used in manufactured sand processing of water conservancy and hydro-power, refractory materials, construction, high-grade highways and high road industries etc.

　　Suitable material: soft iron ore, sandstone, gypsum, slag, coal gangue, lump coal and metallurgical solvent raw materials etc.

　　Feeding size: <100，<220

　　Discharge size: ≤3，70-90%，≤3，70-90%

　　Production capacity: 8-120(t/h)

立即订购

产品特点

　　The PFL series vertical complex crusher is newly developed and optimization-designed

　　products on the rough grinding and fine crushing operations combined with the advanced technology from domestic and foreign crushing companies. It has the features of simple structure, high crushing ratio, low energy consumption, steady running, and easy operation as well as maintenance, etc.

　　1. Reasonable structure, low operation cost. The materials crushes with each other will little wear.

　　2. High breaking ratio and low energy consumption.

　　3. It has both rough grinding and fine crushing function.

　　4. The water in the material does little effect to the crusher, and the water content can reach about 8%.

　　5. Low noise and less dust.

工作原理

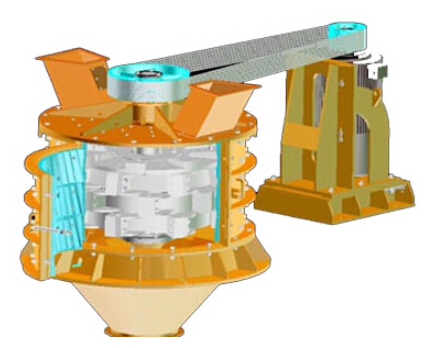

　PFL series vertical complex crusher is newly developed and optimal designed products on the coarse and fine crushing operation combined with the advanced technology from domestic and foreign crushing companies. It has the features of simple structure, high crushing ratio, low energy consumption, steady running and easy operation as well as maintenance, etc.

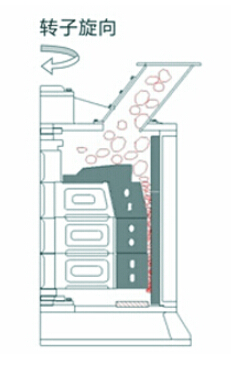

　　1、Simple and reasonable structure, low cost on operation as well as small wear with working principle of “materials impact to materials”.

　　2、 Efficient crushing effect and energy saving

　　3、Fine and coarse grinding available

　　4、Less affected by the moisture content, the crusher can accept the material whose moisture reaches around 8%.

　　5、Low noise, small dust pollution.

　　6、Suitable for hard and medium hard materials.

技术参数

(Model)	(Feeding Size)（mm）	(Discharge Size)（mm）	(Rotate Speed of Maim Shaft)(r/min)	(Capacity)(t/h)	(Power)(kw)	（Outline Dimension LWH（mm）
YHPFL-750	＜100	≤3，70-90%	980-1220	8-20	45	237011101300
YHPFL-1000	＜120	≤3，70-90%	650-980	15-30	55	268015201420
YHPFL-1250	＜150	≤3，70-90%	510-770	35-45	90	324016901660
YHPFL-1500	＜180	≤3，70-90%	500-600	50-90	132	353020502030
YHPFL-1750	＜200	≤3，70-90%	420-540	70-100	160	380023602100
YHPFL-2000	＜220	≤3，70-90%	360-500	90-120	200	427026102180
