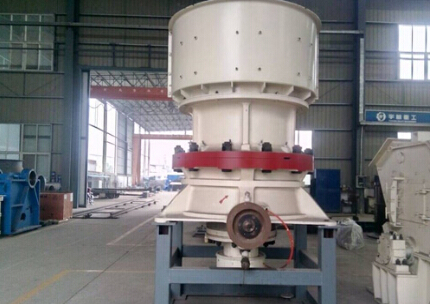

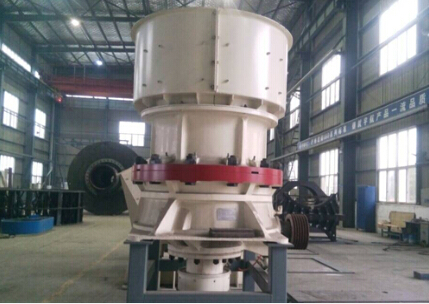

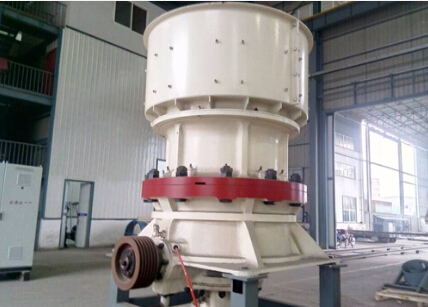

Hydraulic cune crusher

　　hydraulic cone crusher

　　Application: metallurgy, construction, road building, chemistry, silicate fields

　　Suitable material: Crush various ores and rocks in medium size and medium hardness.

立即订购

产品特点

　　Features:

　　1. It has many advantages, such as High breaking ratio and efficiency, high handling capacity, low operation cost, easy adjustment and economic usage.

　　2. It has longer working life due to its proper parts material and structure, and the crushed granule is uniform which can reduce cycle loading.

　　3. The hydraulic cleaning chamber system is used in the medium and large crushers, which reduces the stop time. The users can choose the suitable crusher according to their own requirement. There are many crushers with different chambers available.

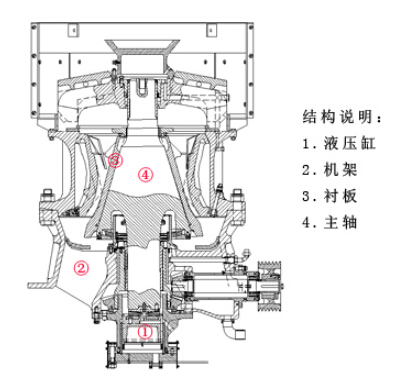

工作原理

　　1.The grease lubrication is used for sealing system of the crusher in order to avoid the defects

　　caused by the blocking of water supplying and drainage system, or by water & oil mixture.

　　2.The spring insurance system is overload protection device which will make the impurities and

　　metal through the crushing cavity without harm the crusher.

　　3. The crusher includes the standard type and shot head type. Normally the standard type is

　　featured by large feeding size and discharge size; and the short head type as it has the steep

　　broken cone the feeding size is smaller. So the standard type crusher is suitable for coarse

　　and middle materials; and the short type one is used for middle and fine sizes.

技术参数

Model	Maximum feed size	Minimum discharge port	Motor power	Throughput
Model	Maximum feed size	Minimum discharge port	Motor power	25	30	40
PYY1110X	140×220×280	25-40	90-132	125	135	155
PYY1150Z	170×240×340			140	155	180
PYY1150D	200×280×400			140	155	180
PYY1260X	150×220×310	25-40	110-315	160	1810	210
PYY1260Z	180×250×360				235	270
PYY1260D	220×300×440			185	205	240
PYY1370X	155×220×310	25-40	200-315	265	290	335
PYY1370Z	200×280×400				320	375
PYY1370D	250×350×500					410
