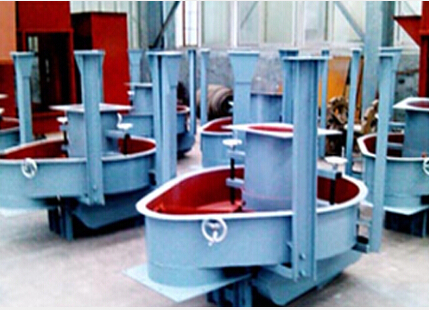

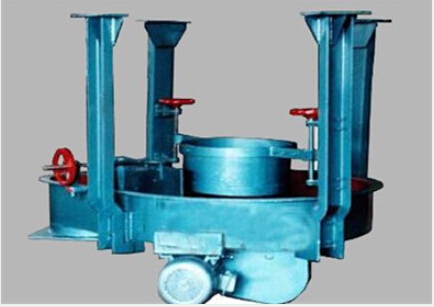

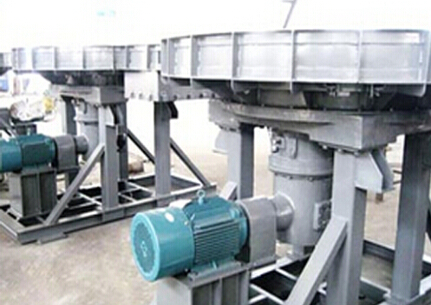

Disk feeder

　　Introduction:

　　1.DK and DB disk feeders are widely used feeders, which transmit the material from the container to the material receiving equipment through the rotating disk and adjustable scraper with the help of the material flowability.

　　2.Suitable material:

　　It can be applied to the material which is not viscous with poor flowability.

　　3.Advantages:

　　Compact design, simple structure, easy adjustment, reliability, less repair and low noise.

立即订购

产品特点

　　Features:

　　1.　Simple structure, reliable performance and esay adjustment.

　　2.　It is equipped with the torque limited hydraulic coupling. It can start with full load and has overload protection.

　　3.　It has light weight, small size, reliable performance, long lifespan and easy maintainenance.

　　4.　The maxium feeding capacity can reach 1200t/hour (coal).

　　5.　DK and DB disk feeders are preferred by cement factory, chemistry, power plant ect. And it is also can be feeding equipment for the non-viscous material. This kind of feeder has hanging structure.

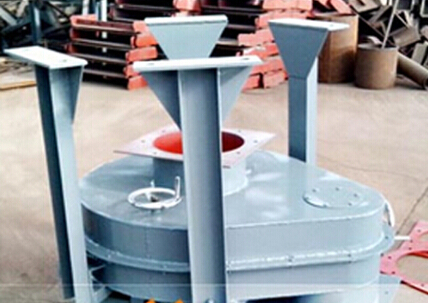

　　6. DB disk feeder has the closed structure which can prevent dirt and dust. But the adjustment can only be done in the inner shell but is not intuitive. While DK disk feeder has the open structure, which is applied for the material with less dust. The operation and adjustment are intuitive.

工作原理

网站资料更新中...

技术参数

Parameter model			DK6	DK8	DK10	DK13	DK16	DK18	DK20
Parameter model			DB6	DB8	DB10	DB13	DB16	DB18	DB20
Disc diameter		mm	600	800	1000	1300	1600	1800	2000
Max speed		r•p•m	8	8	7.5	6.5	6	5	5
Min speed		r•p•m	2	2	1.9	1.6	1.5	1.25	1.25
Feeding amount		m³/h	1.28-2.25	2.20-4.42	4.80-9.64	8-16.1	13.1-28.1	17.4-34.6	25.4-51
Motor power		KW	1.1	1.1	1.5	3	4	5.5	7.5
Total reduction ratio		-	116	116	124	143	158	192	192
Max size of material		mm	25	30	40	50	60	70	80
Height of movable tube		mm	50-130	60-165	80-220	100-275	120-340	140-385	16-440
Equipment weight	DK	Kg	440	560	860	1160	2050	3100	330
Equipment weight	DB	kg	500	600	910	1280	2300	-
