worm feeder

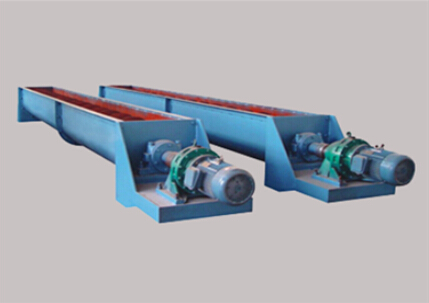

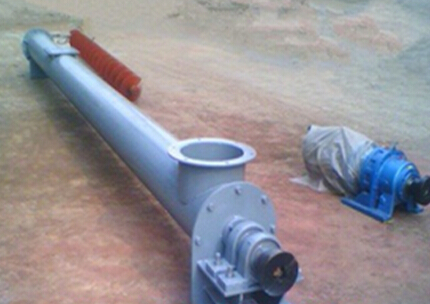

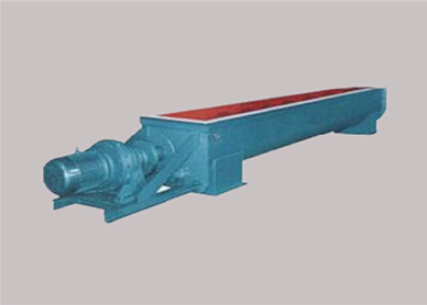

　　The layout of the LS worm feeder:

　　It normally consists of the machine body, feeding and discharging devices and driving device.

　　Application:

　　LS feeder is widely used in many fields, such as building material, metallurgy, chemistry, electricity, coal, mechnical, light industry, food etc. it can convey power, granual and small material, such as cement, coal powder, food, chemical fertilizer, lime-ash, sand, hard coke etc. it is can not applicable for the easy spoil, sticky and clotted material. Its working temperature is -20～40℃, while the material temperature should be -20～80℃. The feeder can be positioned horizontally or inclined. But the inclination angle should be less than 15°.

立即订购

产品特点

　　Features:

　　1.Big bearing capacity, safe and reliable.

　　2.Adaptable, easy maintenance, and long lifespan.

　　3.Small, high speed, convey the material fast and uniformly.

　　4.The cleaning device locates at the discharge end. The feeding position is flexible. The whole equipment is adaptable with low noise.

　　5.The sealing is good and the outside shell is made from seamless steel tube. The ends are connected by the flanges with good rigidity.

工作原理

网站资料更新中...

技术参数

LS	100	160	200	250	315	400	500	630	800	1000	1250
GX			200	250	300	400	500
Spiral diameter (mm)	100	160	200	250	315	400	500	630	800	1000	1250
Pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
(Power) (r/min)	140	120	90	90	75	75	60	60	45	35	30
(Transport volume)QΦ=0.33（m3/h）	2.2	7.6	11	22	36.4	66.1	93.1	160	223	304	458
Pd 1=10m(KW)	1.1	1.5	2.2	2.4	3.2	5.1	4.1	8.6	12	16	24.4
Pd 1=30m(KW)	1.6	2.8	3.2	5.3	8.4	11	15.3	25.9	36	48	73.3
Speed (r/min)	120	90	75	75	60	60	45	45	35	30	20
(Transport volume) QΦ=0.33（m3/h）	1.9	5.7	18	18	29.1	52.9	69.8	125	174	261	305
(Power) Pd 1=10m(KW)	1	1.3	2.1	2.1	2.9	4.1	4.7	6.8	9.4	14.1	16.5
(Power) Pd 1=30m(KW)	1.5	2.3	4.5	4.5	7	8.9	11.6	20.4	28.3	42.2	49.5
Speed (r/min)	90	75	60	60	45	45	35	35	30	20	16
(Transport volume)QΦ=0.33（m3/h）	1.4	4.8	15	15	21.8	39.6	54.3	97	149	174	244
(Power)Pd 1=10m(KW)	0.9	1.2	1.9	1.9	2.5	3.4	4.3	5.4	8.1	9.5	13.3
(Power)Pd 1=30m(KW)	1.2	2.2	3.8	3.8	5.4	6.8	9.2	16	24.4	28.6	39.9
Speed (r/min)	75	60	45	45	35	35	30	30	20	16	13
(Transport volume )QΦ=0.33（m3/h）	1.2	3.8	11	11	17	31.7	46.5	73	99.3	139	199
(Power)Pd 1=10m(KW)	0.75	1.1	1.6	1.6	2.1	3.1	3.7	4.6	5.7	7.7	11
(Power)Pd 1=30m(KW)	1.1	1.8	3.4	3.4	4.4	5.6	8	14	16.7	23.2	33
