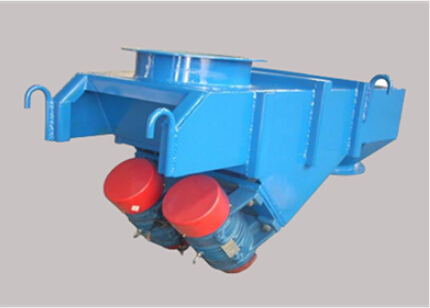

electro-vibrating feeder

　　Introduction:

　　The magnetic vibrating feeder is replaced by GZG series electrical vibrating feeder in many fields. The speed and power can be easily controlled since the vibrating motor is the vibrating source. The amout can be controlled through controlling the speed and transmission power.

　　Application:

　　GZG series feeders are widely used in mines, metallurg, coal mine, building material, light industry, chemistry, electricity, food fields etc. it is used to transmit power material from bunker or funnel to the receiving device constantly and uniformly.

立即订购

产品特点

　　Features:

　　1.Simple structure, light, low noise, reliable performance, large feeding cappacity, easy maintenance.

　　2.It can start quickly, work and stop steadily since the utilization of the motor synchronization principle.

　　3.The material moves in a parabolic path, so the wear of the feeding chute is little.

　　4.The flow direction of the material can be changed at any time, so the precision of the material amount is very high.

　　5.This series can not be used in explosive sites.

工作原理

网站资料更新中...

技术参数

Type	Treatment quantity ( t/h )	Feed size (mm )	Feed size	Granularity mm )	Vibration motor					Weight (kg )
Type	Treatment quantity ( t/h )	Feed size (mm )	Feed size	Granularity mm )	Voltage (V)	Frequency (Hz )	Type	Power (kw )	(Vibration frequency)	Weight (kg )
GZG30-4	15	3001000160	连续	120	380	50	YZD2.5-4	0.18*2	1450	110
GZG40-4	30	4001200160					YZD5-4	0.25*2	次/分	155
GZG50-4	50	5001200160					YZD8-4	0.4*2		190
GZG60-4	80	6001800180		180			YZD16-4	0.75*2		410
GZG70-4	100	7001800200		180			TZP20-4	1.1*2		440
GZG80-4	200	8002000225		200			TZD32-4	1.5*2		640
GZG90-4	300	9001500300		250			YZD50-4	2.2*2		730
GZG110-4	400	11001500300		250						900
GZG130-4	500	13001500400		350						1000
GZG70-6	80	7001800200		150			YZD20-6	1.5*2	960	440
GZG80-6	160	8002000225		180			YZD30-6	2.2*2	次/分	670
GZG90-6	240	9001500300		240			YZD40-6	3.0*2		740
GZG110-6	320	11001500300		240			YZD50-6	3.7*2		940
GZG130-6	400	13001500400		320						1040
GZG150-6	500	15001800500								2000
GZG180-6	800	18001800500					YZD75-6	5.5*2		2590
ZG200-6	1000	20002000500		360			YZD75-6	5.5*2		3700
