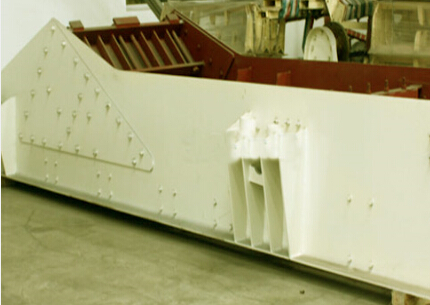

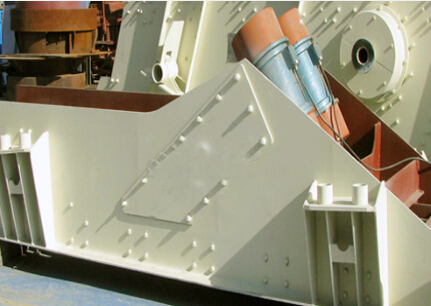

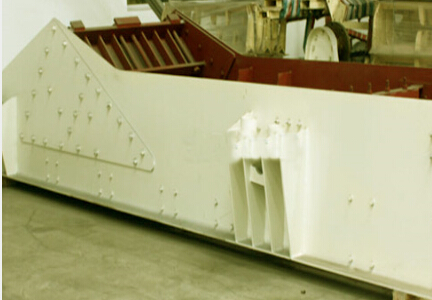

grizzly feeder

　　Introduction:

　　The feeding side of the bar feeder uses blind plate and bars. It is used to feed material evenly before the large-scale material is crushed, especially for ferrous and non-ferrous metal ores, building stone. The gaps between the bars can be adjusted, which can separate the mud and fine material when feeding material and help the crusher to function well.

　　Appplication: metallurgy, coal mine, mine processing, building material, chemistry, and abrasive material etc.

　　Suitable material: various ores and other material.

立即订购

产品特点

　　Features:

　　1.This series has many types, and can be designed and manufactured based on the customers’ requirement.

　　2.It vibrates stably, works reliably with long lifespan.

　　3.The vibration force can be adjusted and the flow rate can be changed and adjusted. The adjustment is easy and stable.

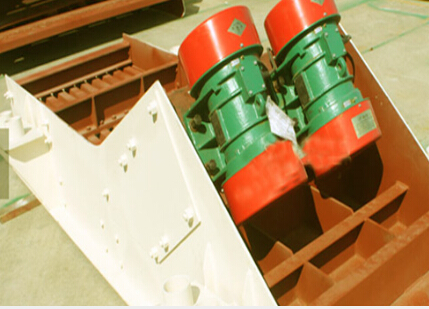

　　4.The vibrating source is the vibrating motor with low noise and power comsumption.

　　5.Simple structure, work reliably and easy adjustment & installation.

　　6.It is light and samll with easy maintenance. The closed structure can prevent the dust pollution.

工作原理

网站资料更新中...

技术参数

Type	Max feed size	Processing capacity	Eccentric shaft speed	Motor power	Outline dimension（L×W×H）	Weight	Groove size
	Max feed size	Processing capacity	Eccentric shaft speed	Motor power	Outline dimension（L×W×H）	Weight	Groove size
	（mm）	（t/h）	（r/min）	（kw）	mm	（kg）	（mm）
GZQ-0938	500	96-160	500-714	11	3882×2224×2121	4082	3800×950
GZQ-0949	500	120-240	500-800	15	4957×2277×2150	5004	4900×950
GZQ-1149	580	120-280	500-800	15	4957×2400×2150	5324	4900×1100
GZQ-1159	600	200-350	500-800	22	6000×2500×2150	6130	5900×1100
GZQ-1360	750	400-560	500-800	22	6082×2580×2083	7800	6000×1300
