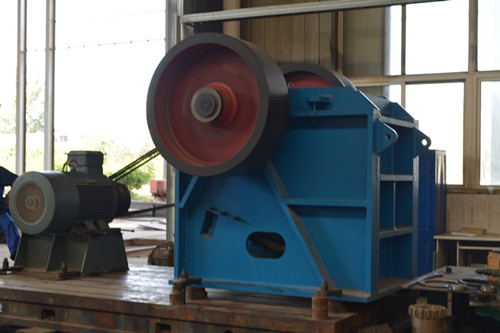

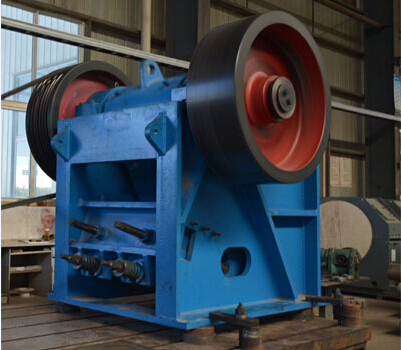

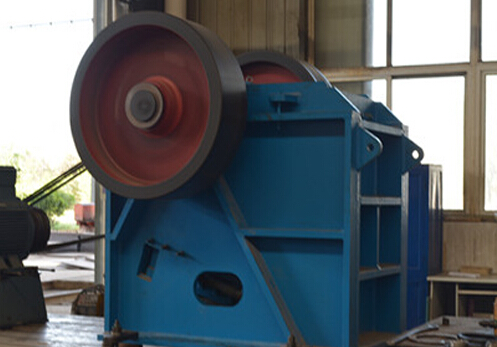

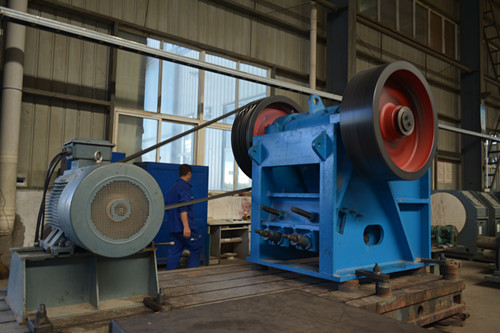

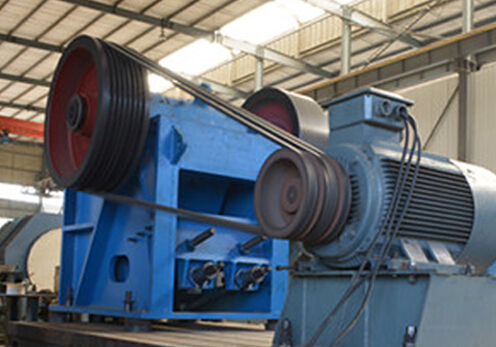

Jaw Crusher
1. Although the jaw crusher appeared in early times, it has been still widely used in metallurgy, chemistry, building materials, electricity and transportation industries. Because it has features of simple structure, firmness, reliable performance, easy maintenance & repair, and low cost for production and construction. It can crush the ores and rocks with tensile strength from 147-245MPa. In recent years, the company has developed new types crushers to meet the demand of high strength and high hardness of the extra-low ferrochromium in metallurgy, mine, and building industries.
2. It is used to crush the medium size of the various ores and large-size material, which are widely used in mine.
application:
Sand stone field, mine exploitation, mine processing, concrete mixing plant, dry mortar products, desulfurization in power plant, quartz sand.
Material size:
feeding size--400-1500mm; discharging size--40-300mm;Production capacity--10-500m3/h.
PRODUCT FEATURES
Features
1. high broken ratio
2. uniform material granule
3. simple structure
4. reliable performance and easy maintenance
5. low cost for working
WORKING PRINCIPLE

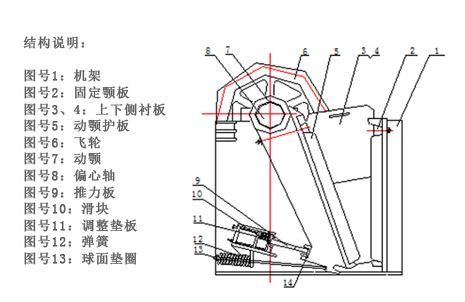

The working part of jaw crusher is composed by two jaw plates:
1.One is fix jaw plate vertically fixed (or the upper end slightly decumbent) on the front wall of the
rack; another is movable jaw plate, which positioned obliquely forms with the fixed jaw a large
top & narrow bottom crushing cavity (working chamber).
2.The movable jaw plate does the periodic reciprocating motion relative to the fixed one.
When the movable jaw separates, the materials enter into the crushing chamber; when it closes,
the materials between the two jaw plates are crushed. The product is discharged from the bottom.
3. The upper part of movable jaw which is hanged directly on the eccentric shaft - the connection rod of crank connection mechanism, is driven directly by the eccentric action of the shaft; and the lower part of movable jaw hinged with the thrust plate is supported on the rear wall of the rack. When the eccentric shaft rotates, the motion trajectory of each point on the moving jaw is the circumference of the suspension point (the radius is equal to the eccentricity), and gradually becomes the ellipse. More downward to the lower part, the ellipse is more biased, until to reach the lower part connecting with the thrust plate, the point trajectory is arc line.
TEHNICAL PARAMETERS
|
Product |
Specification model(mm) |
Throughput |
Motor power(kw) |
Equipment weight（t） |
Dimensions(L×W×H)mm |
|
颚式破碎机 |
PE400×600 |
10-34m³/h |
30 |
6.8 |
1410×1732×1586 |
|
PE500×750 |
22-52m³/h |
55 |
9.9 |
1930×2022×1955 |
|
|
PE600×900 |
30-75m³/h |
75 |
16.2 |
1975×2182×2393 |
|
|
PE750×1060 |
72-150m³/h |
90 |
33.5 |
2550×2322×3115 |
|
|
PE900×1200 |
80-155m³/h |
110 |
50 |
3180×2795×3201 |
|
|
PE900×1500 |
200-400m³/h |
132 |
80 |
3180×3175×3205 |
|
|
PE1200×1500 |
250-500m³/h |
160 |
102 |
4200×3732×3845 |
