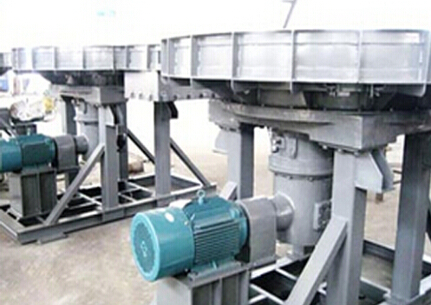

Disk feeder

    Introduction:

  DK and DB disk feeders are widely used feeders, which transmit the material from the container to the material receiving equipment through the rotating disk and adjustable scraper with the help of the material flowability.

  Suitable material:

  It can be applied to the material which is not viscous with poor flowability.

  Advantages:

  Compact design, simple structure, easy adjustment, reliability, less repair and low noise.

consultation Immediate order

PRODUCT FEATURES

Features:

  1.Simple structure, reliable performance and esay adjustment.

  2.It is equipped with the torque limited hydraulic coupling. It can start with full load and has overload protection.

  3.It has light weight, small size, reliable performance, long lifespan and easy maintainenance.

  4.The maxium feeding capacity can reach 1200t/hour (coal).

  5.DK and DB disk feeders are preferred by cement factory, chemistry, power plant ect. And it is also can be feeding equipment for the non-viscous material. This kind of feeder has hanging structure.

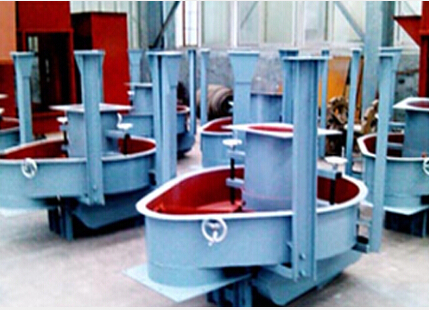

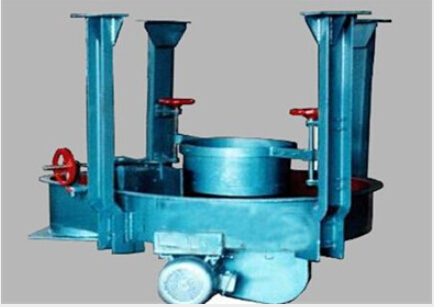

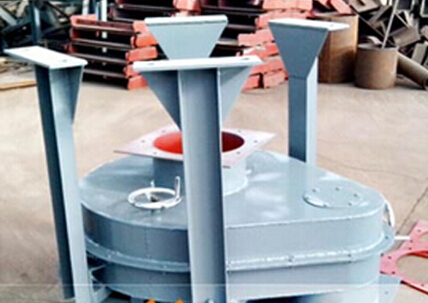

  6.DB disk feeder has the closed structure which can prevent dirt and dust. But the adjustment can only be done in the inner shell but is not intuitive. While DK disk feeder has the open structure, which is applied for the material with less dust. The operation and adjustment are intuitive.

WORKING PRINCIPLE

Website information update...

TEHNICAL PARAMETERS



Parameter/ Model

DK6

DK8

DK10

DK13

DK16

DK18

DK20

DB6

DB8

DB10

DB13

DB16

DB18

DB20

Disc diameter

mm

600

800

1000

1300

1600

1800

2000

Maximum speed

rpm

8

8

7.5

6.5

6

5

5

Minimum speed

rpm

2

2

1.9

1.6

1.5

1.25

1.25

Feed quantity

m3/h

1.28-2.25

2.20-4.42

4.80-9.64

8-16.1

13.1-28.1

17.4-34.6

25.4-51

Motor power

KW

1.1

1.1

1.5

3

4

5.5

7.5

Total reduction ratio

-

116

116

124

143

158

192

192

Maximum particle size

mm

25

30

40

50

60

70

80

Movable cylinder height

mm

50-130

60-165

80-220

100-275

120-340

140-385

16-440

Equipment weight

DK

Kg

440

560

860

1160

2050

3100

330

DB

kg

500

600

910

1280

2300

-
